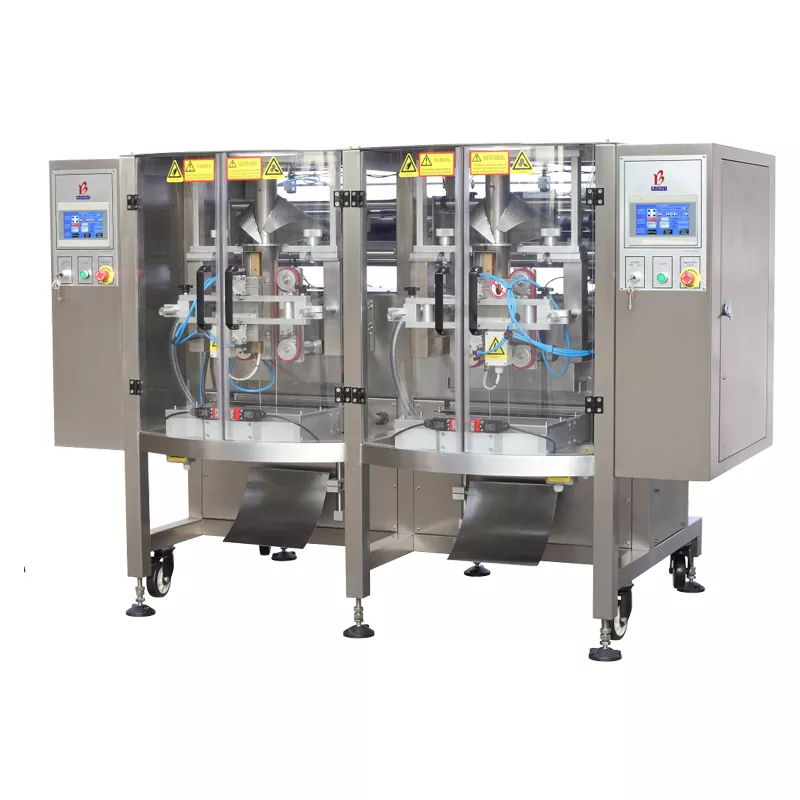

Twin Type Vertical Packaging Machine
Dustrial Machinery® Twin Type Vertical Packaging Machine is suitable for almost all kind of food and non-food sectors, which allows to pack wide range of goods and bag sizes.You can keep your special tastes and smells of your products with Twin Type Vertical Packaging Machine.
Model:TWIN BX Series
Send Inquiry
Product Description
The following is the introduction of Dustrial Machinery® high quality Twin Type Vertical Packaging Machine, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
• Single-layer PE
• Laminated film
• Various complex films
Dustrial Machinery® Twin Type Vertical Packaging Machine Feature
-
• Stainless steel structure, PLC with touch screen control
• Simple and compact design for saving installation space
• Low cost, only one set of feeding and filling system needed for a complete packing line
• All the Bohui standard machine can be made in twin type if customer require
Optional device
|
• Nitrogen gas flushing • Hole punch device • Safety device • Vacuum device • Flip device |
• Gusset device • Tear notch device • Bag support • 4 lines folding device • Film tracking device |
• Air expeller • Material stopper • PE sealing system • Static eliminator • Special sealing jaws |
Packing material
Heat sealable roll film• Single-layer PE
• Laminated film
• Various complex films
| Model | BX-2400 | BX-2500 | BX-2620 |
| Film width | 140-400mm | 180-500mm | 240-620mm |
| Bag length | 50-230mm | 60-300mm | 70-380mm |
| Speed | Max. 200 bpm | Max. 180 bpm | Max. 170 bpm |
| Power supply | 220V, 50/60HZ, 7Kw | 220V, 50/60HZ, 8Kw | 220V, 50/60HZ, 9Kw |
| Air requests | 0.4m3/min, 0.6MPa | 0.4m3/min, 0.6Mpa | 0.4m3/min, 0.6MPa |
| Outer dimension | 1900x1290x1130mm | 2220x1510x1480mm | 2420x1570x1670mm |
