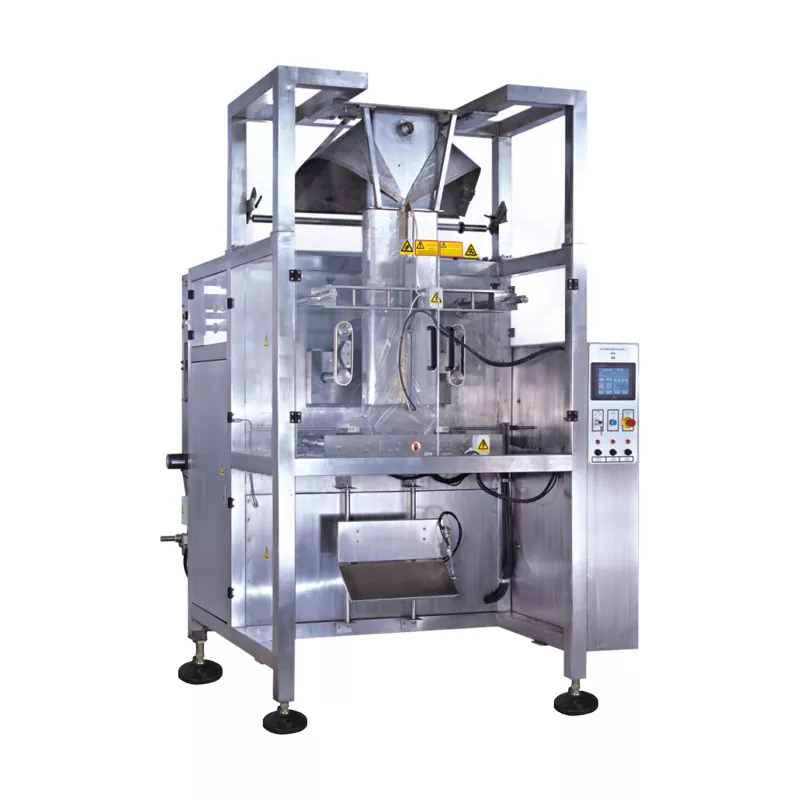

Super Large Automatic Vertical Packaging Machine

Dustial Machinery® BL-1000 superlarge automatic packaging machinecan meet the packaging requirements of automatic bag making, filling and sealing of packaging films with a maximum width of 1 meter, and the maximum bag capacity can reach 14 liters; BL-1200 superlarge automatic packaging machine can also meet the packaging requirements of packaging films with a maximum width of 1.2 meters , Bag capacity up to 35 liters. According to the heat sealing characteristics of different packaging materials, the machine can be equipped with a standard sealing device to apply to various heat-sealable composite films, or a special pulse sealing device for single-layer PE film, which can be used in a wider range.

Dustial Machinery® Super Large Automatic Vertical Packaging Machine Feature

• Simple in structure and reliable in control
• Stainless steel frame (standard)
• Mild steel (surface painted) version can be selected
• Standard thermal seal for laminated film (standard version)
• Instant impulse seal for single-layer PE film (Option)
• Different operating languages available
• PLC and touch screen interface controller ensure easy operating
• Fits for working with different fillers or weighers

Optional device

• Nitrogen gas flushing
• Gusset device
• Hole punch device
• Air expeller
• Material stopper
• Bag support
• PE sealing system
• Static eliminator

Packing material

Heat sealable roll film
• Single-layer PE
• Laminated film
• Various complex films

Application

Loose granule products 5-25kgs.

Model	BL-1000	BL-1200
Film width	500-1000mm	600-1200mm
Bag length	100-600mm	100-800mm
Speed	Max. 25 bpm	Max. 20 bpm
Power supply	220V, 50/60HZ, 5Kw	220V, 50/60HZ, 6Kw
Air requests	0.9m3/min, 0.6Mpa	0.9m3/min, 0.6MPa
Outer dimension	2170x1780x2740mm	2170x1780x3040mm
